Dead Simple Real Time Plotting with C/C++ and Python

Concepts:

• Standard input/output (Think: the input and output of your program)


• Unix Pipes


• Plotting with matplotlib

---

So, you have your code working, but you are tired of having to run a separate program to see plots? There are many simple solutions, but I am going to present what I think is the absolute simplest. What we are going to do is have your C/C++ program output the data and have python capture it and save plots in real-time! What does this entail? Well...

• Your C/C++ program no longer writes to a file (using fprintf), but rather writes to the standard output (STDIN, using simply printf)


• Your python script will now read data straight from STDIN using raw_input()


• You will have to use a unix shell to sew all of this together

Let's look at a very simple example. Suppose we have a very important C program that outputs some very important numbers. In order for it to work with this new standard, we have it output the data to screen. Namely, it does:


makedata.c
#include <stdio.h>
#include <math.h>

#define PI 3.14159

int main()
{
  int i,j;
  for(j=0; j<10; j++) {
    for(i=0; i<20; i++) {
      printf("%f\t",sinf(i * PI / 10.0 + j*PI/10));
    }
    printf("\n");
  }

  return 0;
}

Now, when we run this, we get a bunch of numbers thrown to screen!


$ gcc -lm -o makedata makedata.c
$ ./makedata
0.000000 0.309017 0.587785 0.809017 0.951056 1.000000 0.951057 0.809018 0.587787 0.309019 0.000003 -0.309014 -0.587783 -0.809015 -0.951055 -1.000000 -0.951058 -0.809020 -0.587789 -0.309022
0.309017 0.587785 0.809017 0.951056 1.000000 0.951057 0.809018 0.587787 0.309019 0.000003 -0.309014 -0.587783 -0.809015 -0.951055 -1.000000 -0.951058 -0.809020 -0.587789 -0.309022 -0.000005
0.587785 0.809017 0.951056 1.000000 0.951057 0.809018 0.587787 0.309019 0.000003 -0.309014 -0.587783 -0.809015 -0.951055 -1.000000 -0.951058 -0.809020 -0.587789 -0.309022 -0.000005 0.309012
0.809017 0.951056 1.000000 0.951057 0.809018 0.587787 0.309019 0.000003 -0.309014 -0.587783 -0.809015 -0.951055 -1.000000 -0.951058 -0.809020 -0.587789 -0.309022 -0.000005 0.309012 0.587781
0.951056 1.000000 0.951057 0.809018 0.587787 0.309019 0.000003 -0.309014 -0.587783 -0.809015 -0.951055 -1.000000 -0.951058 -0.809020 -0.587789 -0.309022 -0.000005 0.309012 0.587781 0.809013
1.000000 0.951057 0.809018 0.587787 0.309019 0.000003 -0.309014 -0.587783 -0.809015 -0.951055 -1.000000 -0.951058 -0.809020 -0.587789 -0.309022 -0.000005 0.309012 0.587781 0.809013 0.951055
0.951057 0.809018 0.587787 0.309019 0.000003 -0.309014 -0.587783 -0.809015 -0.951055 -1.000000 -0.951058 -0.809020 -0.587789 -0.309022 -0.000005 0.309012 0.587781 0.809013 0.951055 1.000000
0.809018 0.587787 0.309019 0.000003 -0.309014 -0.587783 -0.809015 -0.951055 -1.000000 -0.951058 -0.809020 -0.587789 -0.309022 -0.000005 0.309012 0.587781 0.809013 0.951055 1.000000 0.951059
0.587787 0.309019 0.000003 -0.309014 -0.587783 -0.809015 -0.951055 -1.000000 -0.951058 -0.809020 -0.587789 -0.309022 -0.000005 0.309012 0.587781 0.809013 0.951055 1.000000 0.951059 0.809021
0.309019 0.000003 -0.309014 -0.587783 -0.809015 -0.951055 -1.000000 -0.951058 -0.809020 -0.587789 -0.309022 -0.000005 0.309012 0.587781 0.809013 0.951055 1.000000 0.951059 0.809021 0.587792

In order to capture the data in python, we must use the raw_input() function. This function simply gets input from the user and puts it into a variable. It puts everything the user types up to when they press enter. This is why the C code is that it only prints a newline (ie: '\n') once one full line of data has been outputted to screen. If we had put a newline in the first printf statement, the python plotting program would only plot one number at a time! So, you can think of the tab (\t) as deliniating between values and the newline (\n) deliniating between different sets of data. The python code that reads this data looks like:


plot.py
import numpy as np
import pylab as py

def plot_data(data):
  py.clf()
  py.plot(data)
  py.show()
  py.savefig("data-%.8d.png"%counter)

if __name__ == "__main__":
  counter = 0
  while True:
    try:
      tmp = raw_input().strip().split()
      data = np.array(tmp, dtype=np.double)
    except EOFError:
      print "Input has terminated! Exiting"
      exit()
    except ValueError:
      print "Invalid input, skipping.  Input was: %s"%tmp
      continue

    print "Plotting plot number %d"%counter
    plot_data(data)
    counter += 1

You can test this program by running it, typing a bunch of numbers separated by a space, then pressing enter. It will plot it, display it and save it! Then, the program will ask you again for more numbers. To exit, you type Control-D which makes the EOFError happen.

What is going on in this program is quite simple. First, "tmp" gets the long string of characters that you typed in. However, python doesn't know it contains numbers, it just looks like a bunch of random characters! Now, we use numpy and tell it to create an array out of the data. The "dtype=np.double" is us telling numpy that we are realing with valid numbers. A ValueError happens if we weren't good on our promise and the input isn't in fact all numbers.

Now for the most important part... how do we put these two things together? Unix has a very cool thing called input/output redirection. This allows us to redirect the output of one program to the input of another. So, instead of us having to type in the numbers for the python script, we can have the C/C++ program type it for us! The syntax is quite simple, all you have to do is:


$ ./makedata | python plot.py

And now you are done! You should have a bunch of plots coming up of sin waves with various phases. Congrats!

There is one more thing you can do to make your plots even more fancy. Sometimes, you don't want to save each figure or have to click through to see every plot, one at a time. Instead, you just want to see an animation of what is happening as it is happening! Or, you are already making an animation with many py.plot() statements, and you want it to be smoother and faster! To do this, you can to look into pylab animations. The people at scipy have a great tutorial on this issue. You can also look at a small plotting script I made which does something very similar.

The basics of this method involve: creating your plots at the beginning of your script, and saving them into variables. Then, when you get new data that you want to plot, you simply change the data in the plot with .set_data(). One thing to note is the line "py.ion()" right after I imported pylab and how I use py.draw() instead of py.show(). If you want to get started playing around with this, simply take the same code from earlier in this document, add "py.ion()" after we import pylab, delete the py.savefig() line and replace py.show() with py.draw()! This will give you a (quite slow) animation.

fortran + python = good

So, after a long time working solely in FORTRAN, I decided to try to find a way to use python to get the same things done. I wanted to incorporate what I had done in FORTRAN as a library that way I wouldn't have to recode much and could instead continue developing (except now in the wonderful warmth of python)

The most successful method I tried was using f2py. What f2py does is take in a FORTRAN module (see the tvd module below, for example) and makes a python interface for it. What this means is that you can import fortran code and run it at the the speeds you would expect from compiled code!

Let me first take you through the module. You can see from the 'include "omp_lib.h"' that I'm using openMP. For those that don't know, openMP is a great way of making any code parallel on shared memory machines (ie: if you have a computer with multiple cores or hyper-threading). The lines with "!$OMP", called pragmas, are in fact calls to openMP and effect to proceeding code. In addition, I created a function called "set_num_threads" to manually change the ammount of parallelization that is used by the program (by default, the number of threads is equal to the number of CPU's on the machine). A great thing about this "!$OMP" convention is that, since ! designates a comment, you can still compile and run this code without having openMP enabled!

Now, let's move on to f2py! You can see every subroutine (and function) has lines starting with "!f2py". Similar to openMP, this is used to designate various options. For example, the "!f2py threadsafe" tells python that the function will be using various threads and that the gil shouldn't be used. As a result, we cannot take in or return in python objects (there are methods to take in python callbacks when not using threadsafe). The intent option sets if a parameter is going to be inputed or outputted. With intent, python knows how to interpret python input and what should be given back as return values.

So, let's look at the function set. It takes in, in python, u and CFL. The other parameters are optional. In addition, you can see that "dt" and "maxv" are inputs but are calculated in the function. I did this little hack so that I can return multiple values to python. So in the end, this function is defined, in the python space, as "u, dt, maxv = step(u, cfl)". The most beautiful part is that when passing u to this module from python, u is a numpy array! Note that the other functions that are called (namely, do[XYZ] are also defined in the module, however for the sake of brevity they are not listed below).

In order to use this fortran module, we need to compile it with f2py. The end result is a .so that can be imported into fortran. I compiled this particular module with `f2py -c -m tvd --f90flags="-fopenmp -lm " --opt="-O3 --ffast-math" -lgomp --fcompiler=gnu95 tvd.f90` So, let's go through this. "-c" tells f2py to look at the pragmas in the code in order to learn how each function should be handled. "-m tvd" defined the name of the resulting module. the --f90flags, as expected, dictate the flags send to the FORTRAN compiler. I have chosen to use openmp (not needed, by the way, with newer versions of GCC where openMP is built-in) and libmath. opt sets the optimization flags. -lgomp tells f2py to use openMP (this redundancy seems necessary although I have a feeling that one of my statements telling f2py to use openMP is redundant). Finally, "fcompiler" tells f2py to use gfortran.

Let's look at a little session with this module, as to understand what f2py created. (I use ipython for its tab-completion)

In [1]: import numpy

In [2]: from tvd import tvd

In [3]: u = numpy.random.random((4,100,100,100)) #create a random velocity field

In [4]: u[0,:,:,:] = 1 #set density to 1 to avoid instabilities

In [5]: %timeit output = tvd.step(u, 0.65)
10 loops, best of 3: 704 ms per loop

Amazing! It takes 704ms to evolve a 100x100x100 isothermal grid! Normal usage of this would be: `u, dt, maxv = tvd.step(u, 0.65)`. One note, I write "from tvd import tvd" because the first "tvd" represents the file and the second "tvd" represents the FORTRAN module. If instead I had just written tvd.f90 as a series of subroutines and not as a FORTRAN module, I could have simply written "import tvd". Now, I can get to doing real science instead of being swamped by the inhuman syntax of FORTRAN (a language best spelled in all caps to truly illustrate its crimes).

And now, for the code... I'm leaving out the actual computational part however I may release that in the near future (comment if you'd like to see it!).

tvd.f90:
MODULE tvd

  implicit none
  include "omp_lib.h"

  DOUBLE PRECISION :: csound=1

  CONTAINS

  SUBROUTINE set_num_threads(n)
    !f2py threadsafe
    !f2py intent(in) n
    INTEGER :: n
    CALL OMP_SET_NUM_THREADS(n)
  END SUBROUTINE set_num_threads

  SUBROUTINE step(u, n, CFL, dt, maxv)
    !f2py threadsafe
    !f2py intent(in) u
    !f2py intent(in) n
    !f2py intent(in) CFL
    !f2py intent(in), optional dt
    !f2py intent(in), optional maxv
    !f2py intent(out) :: u, dt, maxv
    !f2py depend(u) n
    INTEGER :: n, k
    DOUBLE PRECISION, DIMENSION(4,n,n,n) :: u
    DOUBLE PRECISION :: CFL, dt, maxv

    !$OMP PARALLEL DO shared(u) private(n,k) &
    !$OMP SCHEDULE(dynamic) REDUCTION(MAX:maxv)
    DO k=1,n
      maxv = max( maxval( abs(u(2,:,:,k)) / u(1,:,:,k) ), &
                  maxval( abs(u(3,:,:,k)) / u(1,:,:,k) ), &
                  maxval( abs(u(4,:,:,k)) / u(1,:,:,k) )  &
                )
    END DO
    !$OMP END PARALLEL DO

    !Calculate the timestep based on the courant condition
    if (dt .eq. 0.0) dt = CFL / (csound+maxv)

    !perform strang splitting using the hydro only 2nd order
    !TVD algorithm given by http://arxiv.org/abs/astro-ph/0305088
    CALL doX(u,n,dt, maxv)
     CALL doY(u,n,dt, maxv)
      CALL doZ(u,n,dt, maxv)
      CALL doZ(u,n,dt, maxv)
     CALL doY(u,n,dt, maxv)
    CALL doX(u,n,dt, maxv)
  END subroutine step
END MODULE

SMS/Twitter Control of your server

Well, I thought it was about time to post something, so let me show you this little project I've been tinkering with. It basically allows me to control my server with a cellphone. This can be applied to any computer with python installed and can do really anything (right now I have it search/download bittorrent files).

It basically works by creating a master thread on the server that constantly checks some secured twitter account for directed messages. This basically means that you can send a directed message to some secured user through twitter from your cell phone and when the computer reads this message it will act on it.

The following is the main code: it creates a main thread on the computer listening for new messages. When a new message is found, a new thread is created and the correct command is executed (the commands are defined in the configuration file which will come soon). The benefit to creating new threads is that the task can be halted later by initiating a stop command (the stop commands are hard programmed and are automatically generated for each configuration defined command).

#!/usr/bin/python
#
# Copyright 2008 Michael Gorelick
#
# This program is free software: you can redistribute it and/or modify
# it under the terms of the GNU General Public License as published by
# the Free Software Foundation, either version 3 of the License, or
# (at your option) any later version.
#
# This program is distributed in the hope that it will be useful,
# but WITHOUT ANY WARRANTY; without even the implied warranty of
# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
# GNU General Public License for more details.
#
# You should have received a copy of the GNU General Public License
# along with this program.  If not, see:
# http://www.gnu.org/licenses/gpl.html.
from __future__ import division

'''A tool to allow for remote control of a machine with twitter'''

__author__ = 'Michael G '
__version__ = '0.1'

from sys import stdout
import threading, time, twitter, re, ConfigParser, subprocess

######### CONFIG FILE ##############
configfile = 'twitcontrol.conf'

class TwitThread(threading.Thread):
  def __init__(self,actions,twitter,command):
    threading.Thread.__init__(self)
    self._stop = threading.Event()  #Set the hook for self.stop()
    self.actions = actions
    self.twitter = twitter
    self.commandstruct = command
    self.process = None

  def run(self):
    '''Finds what action is linked to the inputed command'''
    command = self.commandstruct['text']
    for name,contents in self.actions.iteritems():
      found = contents['match'].match(command)
      if found:
        self.name = name
        print "%s: %s: Starting"%(time.ctime(),name)
        self.doCommand(found,command,contents)
        return None
      elif command.lower() == "stop %s"%name.lower():
        self.name = "killthread-%s"%name
        for thread in threading.enumerate():
          if thread.name.lower() == name.lower():
            print "%s: Killing %s"%(time.ctime(),name)
            thread.stop()
        return None

  def doCommand(self,match,command,action):
    '''Runs the command given by the config file for the given input'''
    if action["output"] == "start":
      self.message("%s: Started"%self.name)
    print "Running command: %s"%(action["command"]%match.groupdict())
    self.process = subprocess.Popen(action["command"]%match.groupdict(),\
      stdin=None, stdout=subprocess.PIPE, stderr=subprocess.PIPE, shell=True)
    #We use the following hack because Popen.wait() or Popen.interact() lock
    #the process so we cannot kill it if another thread sends a self.stop()
    while self.process.poll() == None:
      time.sleep(1)
    if action["output"] == "end":
      self.message("%s: Done"%self.name)
    if self.process.returncode != 0:
      err = self.formatstd(self.process.stderr)
      print "%s: %s: Error: %s"%(time.ctime(),self.name,err)
      if action["output"] == "output":
        self.message("%s: Error: %s"%(self.name,err))
    else:
      suc = self.formatstd(self.process.stdout)
      print "%s: %s: Success: %s"%(time.ctime(),self.name,suc)
      if action["output"] == "output":
        self.message("%s: Success: %s"%(self.name,suc))

  def formatstd(self,fd,maxsize=120):
    '''Extracts and formats data from a datastream'''
    return ", ".join([x.strip() for x in fd.readlines()])[:maxsize]

  def message(self,msg):
    '''Sends a tweet to the command sender truncated to 140 characters'''
    self.twitter.PostDirectMessage(self.commandstruct['sender_id'],msg[:140])

  def stop(self):
    '''Stops the current thread and terminates any open processes'''
    print "%s: %s: Thread Killed"%(time.ctime(),self.name)
    self.process.terminate()
    self._stop.set()

  def stopped(self):
    return self._stop.isSet()


class TwitControl:
  def __init__(self,actions,user,passwd,recieveID,timeout=5):
    self.actions = actions
    self.twitter = twitter.Api(username=user,password=passwd)
    self.recieveID = recieveID
    self.timeout = timeout

  def getMessages(self):
    '''Gets all directed messages from twitter from a given user'''
    return [x.AsDict() for x in self.twitter.GetDirectMessages() \
    if x.GetSenderId() == self.recieveID]

  def start(self):
    '''Checks for new messages and commands the threads'''
    commands = self.getMessages()
    numcommands = len(commands)
    while True:
      commands = self.getMessages()
      print ".",; stdout.flush()
      if len(commands) > numcommands:
        for command in commands[0:len(commands)-numcommands]:
          print "%s: MASTER: Found Command: %s"%(time.ctime(),command['text'])
          TwitThread(self.actions,self.twitter,command).start()
        numcommands = len(commands)
      elif len(commands) < numcommands:
        numcommands = len(commands)
      time.sleep(self.timeout)

if __name__ == '__main__':
  configfd = ConfigParser.RawConfigParser()
  configfd.read(configfile)
  print "Reading config: %s" % configfile

  username  = configfd.get('Connection', 'username')
  password  = configfd.get('Connection', 'password')
  recieveID = configfd.getint('Connection', 'recieveID')
  if configfd.has_option('Connection', 'timeout'):
    timeout = configfd.getint('Connection', 'timeout')
  else:
    timeout = 5

  actions = {}
  for section in configfd.sections():
    if section == 'Connection':
      continue
    action = {}
    action['match']   = re.compile(configfd.get(section,'match'))
    action['command'] = configfd.get(section,'command')
    action['output']  = configfd.get(section,'output')
    actions.update({section:action})
  print "Loaded modules: %s"%", ".join(actions.keys())

  print "Listening to user: %s"%username
  control = TwitControl(actions,username,password,recieveID,timeout)
  control.start()

And the following is a sample from the configuration file:

# Copyright 2008 Michael Gorelick
#
# This program is free software: you can redistribute it and/or modify
# it under the terms of the GNU General Public License as published by
# the Free Software Foundation, either version 3 of the License, or
# (at your option) any later version.
#
# This program is distributed in the hope that it will be useful,
# but WITHOUT ANY WARRANTY; without even the implied warranty of
# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
# GNU General Public License for more details.
#
# You should have received a copy of the GNU General Public License
# along with this program.  If not, see:
# http://www.gnu.org/licenses/gpl.html.

[Connection]
username = Secured Username
password = Password of secured username
recieveID = User ID of the command issuer

[reverseSSH]
match = reverse (?P(?:\d{1,3}\.?){4}) (?P\d+)
command = ssh -R %(PORT)s:localhost:22 %(IP)s
output = start

[Talk]
match = say (?P.+)
command = flite -t "%(text)s"
output = None

[Bittorrent]
match = bt (?P.+)
command = transmission-remote -a "`/home/fiber/projects/pyisohunt/pyisohunt.py -n 1 -s seeds -p '%%(url)s' %(search)s`"
output = output

The commands use regex in order to extract keywords. So basically, I can SMS 'd user say hello there' and my computer will initiate the command `flite -t "hello there"` once it receives it! I also have the output of each command regulated by the 'output' parameter on each command. It can either notify me when the command starts, when it ends, or it can send me the output of the command (or, of course, none of the above).

Now, the interesting part is the bittorrent section. Here I send the keywords to another little program I made (really just a bunch of regex and rss tricks... I'll include it at the end). This program returns the URL of the highest seeded match to the keywords from IsoHunt.com. This is sent to transmission and my server starts downloading the torrent! (I use Transmission for bittorrent on my server with the Clutch web UI) So essentially, if a friend recommends a movie (that is in the public domain, of course ;) when I am out, I can tell my server to start downloading it so it will be ready when I am home.

Also, I can set my server to start a reverse-ssh connection to any IP. This is great because I can keep my router locked down but still connect to my server from the outside. Note: normally this sets my server to set up a reverse connection to an intermediary server so that everyone can be behind a firewall, but I'd like to keep the location of this server unknown for now.

Finally, the following is the source for pyisohunt.py. It was a true hack so don't expect clean code!

#!/bin/env python
#
# Copyright 2008 Michael Gorelick
#
# This program is free software: you can redistribute it and/or modify
# it under the terms of the GNU General Public License as published by
# the Free Software Foundation, either version 3 of the License, or
# (at your option) any later version.
#
# This program is distributed in the hope that it will be useful,
# but WITHOUT ANY WARRANTY; without even the implied warranty of
# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
# GNU General Public License for more details.
#
# You should have received a copy of the GNU General Public License
# along with this program.  If not, see:
# http://www.gnu.org/licenses/gpl.html.

import feedparser, re, getopt
from sys import argv

class pyisohunt:
  def __init__(self, search,cat):
    self.search = search
    self.category = cat
    self.isohunt = feedparser.parse( \
      "http://isohunt.com/js/rss/%s?iht=%d"%(search.replace(" ","+"),cat))
    self.results = self.parse(self.isohunt.entries)

  def parse(self,entries):
    results = []
    findstats = re.compile(u"Size: (?P[0-9.]+) MB, in (?P[0-9]+) files")
    findhealth = re.compile(u"Seeds: (?P[0-9]+) \ \; \| \ \; Leechers: (?P[0-9]+) \ \; \| \ \; Downloads: (?P[0-9]+)\<")
    fieldtype = {"size":float, "files":int, "seeds":int, "leechers":int, "downloads":int, "title":unicode,"url":str}
    for item in entries:
      tmp = {}
      tmp['title'] = item.title[:item.title.rfind('[')]
      tmp['url'] = item.enclosures[0].href
      tmp.update(findstats.search(item.summary_detail.value).groupdict())
      tmp.update(findhealth.search(item.summary_detail.value).groupdict())
      results.append(dict([(title,fieldtype[title](value)) for title,value in tmp.iteritems()]))
    return results

  def sort(self,key="seeds"):
    return sorted(self.results,lambda x, y: y[key] - x[key])

if __name__ == "__main__":
  categories = {"all":-1,"video":1,"tv":3,"audio":2,"musicvideo":10,\
                "game":4,"app":5,"pic":6,"anime":7,"comic":8,"book":9,\
                "misc":0,"unclassified":11}
  sortfields = ["size","files","seeds","leechers","downlads"]
  help = """%s [-c category] [-s sort] [-n maxresults] search
  Search through IsoHunt torrents on the commandline.  By Michael G.
  -c  Category name. Can be: """ + ", ".join(categories.keys()) + """
  -s  Sort field.  Can be: """ + ", ".join(sortfields) + """
  -p  Print string (standard python printf notation... try with '-p ""' to see fields)
  -n  Max number of results (Note: sort is applied before results are truncated\n"""

  #Default valus
  category = categories["all"]
  sortfield = "seeds"
  maxresults = None
  printf = """Title: %(title)s
  URL: %(url)s
  Size: %(size)0.2f MB
  Files: %(files)d
  Seeds: %(seeds)d
  Leechers: %(leechers)d
  Downloads: %(downloads)d
  """

  try:
    opts, args = getopt.getopt(argv[1:], "hc:s:n:p:")
  except Exception:
    print "Usage: " + help%argv[0]
    exit(1)
  errors = []
  if args == []:
    errors.append("Must have search terms!")
  else:
    search = " ".join(['"%s"'%x for x in args])
  for o, a in opts:
    if o == "-c":
      try:
        category = categories[a]
      except KeyError:
        errors.append("Invalid category")
    elif o == "-p":
      try:
        printf = str(a)
        test = a%{'files': 1, 'title': "1", 'url':"1",u'downloads': 1, u'leechers': 1, u'seeds': 1, u'size':1}
        del test
      except KeyError, e:
        errors.append("Invalid printf string: Invalid Key: %s"%",".join(e))
      except ValueError:
        errors.append("Invalid print string")
    elif o == "-s":
      if not a in sortfields:
        errors.append("Invalid sort field")
      else:
        sortfield = a
    elif o == "-n":
      try:
        maxresults = int(a)
      except ValueError:
        errors.append("Invalid max number of results (must be integer)")
    elif o == "-h":
      print help%argv[0]
      exit(0)
  if errors != []:
    print "Usage: " + help%argv[0] + "\n".join(errors)
    exit(1)

  results = pyisohunt(search,category)
  for result in results.sort(sortfield)[:maxresults]:
    if printf:
      print printf%result
    else:
      print result

Well, I don't really know what else to say about this... ask questions and I'll be sure to give you more details than you ever wanted!

eeePC 901 Antenna Mod

Well, after the treachery of exams and then the confusing transition into vacation I finally think it's time to update! Well, I've done quite a lot: everything seems ready for the final version of the 3D whiteboard along with the construction of the 3D display. Furthermore everything is in motion to begin the fusion device first semester of the next academic year (damn you Darryl for leaving to Singapore!). But, in the realm of the actual rather than the theoretical, I have modded my eeePC 901 to support external antennas (for only $20).


I love my eeePC, it has changed the way I work. I carry it around with me everywhere scarcely ever noticing its weight allowing me to do work almost anywhere! It's powerful enough for testing, enough hard drive space for my tools, runs of my simulation and even some music. The only downside when I first got it: the antennas weren't powerful enough to pick up those elusive wifi signals. Although, after cracking the magic device open I found that the internal antennas were hooked up using U.FL connection. And so the hacking began!

[picture of wireless module to come in very near future]

Above you can see the actual wifi module from the expansion bay (this is the removable region in the center of the bottom of the laptop). This led me to buy a U.FL to RP-SMA cabel from hyperlinktech (http://www.hyperlinktech.com/item.aspx?id=1123) as seen below:





I chose RP-SMA for the outside connection because I already had an RP SMA antenna from an old router and it seems to be the most popular kind (so getting new antennas shouldn't be too much of a problem). I also bought a 9dB 2.4GHz antenna from the same store. 2.4GHz is the frequency of wireless internet (802.11a/b/n). In order to make everything fit into the eee, I had to sand the stopper almost all the way down until it looks like:



In order to make this hack a nice clean one, I decided to completely gut out the computer so I could put everything back where I wanted to. There are MANY screws so make sure to keep everything organized. I normally take a sheet of paper and put the screws on different parts of it while marking in marker where those screws should be (and how many of them I took out!). I also took out the screen because I was going to machine the hole, but I later realized it was easy enough to do at home. Here's a beauty shot of everything dismantled:

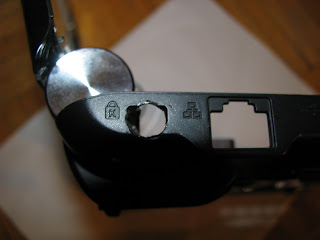

I decided to have the RP SMA connection come out of the "lock" region of the case (right behind the eth0 port). So, I had to make sure that the wire didn't block or bend the motherboard (scary thought! one crack and you have transformed your eeepc into a nice paper weight!). So, I drilled the hole for the connection making sure that it's center was .5mm below the stand of the motherboard (circled in red). To make the hole i used a standard dremel tool outfitted with a 1/8" drill bit.




With that completed I snaked the wire underneath where the motherboard sits. I now plugged the cable to the wifi module, unplugging one of the internal antennas (I recommend doing this before remounting everything as it takes a good amount of force. I even detached the wifi module to make sure there'd be no damage to the motherboard). Once everything is hooked up, it should look like this:





This has been a tremendous gain! The 3dB antenna fits nicely in the carrying case (and so does the eee even with the added width) and the 9dB fits nicely in my backpack. Below is a comparison between only internal antennas, external mod without any antenna and finally external mod with 3dB antenna using `iwlist wifi0 scanning`

#before
fiber@mercury:~$ cat wireless.before
 Cell 01 - Address: 00:1E:58:40:6D:8F
           ESSID:"telepathy"
           Mode:Managed
           Channel:11
           Quality:100/100  Signal level:-31 dBm  Noise level:-81 dBm
#after without antenna
fiber@mercury:~$ cat wireless.afternoext
 Cell 01 - Address: 00:1E:58:40:6D:8F
           ESSID:"telepathy"
           Mode:Managed
           Channel:11
           Quality:65/100  Signal level:-64 dBm  Noise level:-81 dBm
#after with 3dB antenna
fiber@mercury:~$ cat wireless.after3db
 Cell 01 - Address: 00:1E:58:40:6D:8F
           ESSID:"telepathy"
           Mode:Managed
           Channel:11
           Quality:100/100  Signal level:-29 dBm  Noise level:-81 dBm

30% gain with a cheap antenna I just had lying around. I'll post some stats on the 9dB antenna once I am in a controllable enough area (ie: home). Remember, dBm work on the log base 10 scale, so every unit change in dB is a factor of 10 change in strength.

So tell me how this mod works for you or if there are any points that I didn't clearly explain! Happy Hacking!

new project

Well, it's taking longer than I expected for the parts for my most recent project to come in. I'm waiting for some wireless pigtails (U.FL to RP-SMA) so that my EEE PC has an external antenna (an easy hack, but one I haven't seen any documentation online for).

In the meantime, here's an old video I made a while ago playing with non-Newtonian fluids. This is really easy to make (just saturate water with corn starch) and very fun! Non-Newtonian fluids are fluids whose viscosity is dependant on the applied strain. So, the strain from the speaker constantly hitting the fluid causes it to become much more viscous to the point of appearing solid. This causes all sorts of fun! In this video I played a 100hz sin wave through the speaker. I did this later as a demonstration at the Dragon Academy and I have to say it was a great success, I recommend it for any teachers or demonstrators. Hope everyone enjoys!

obama fever

OBAMA WON! Truly a day to remember. So, in the spirit of science funding not being slashed to death I am going to release one of my first python scripts that downloads all images off of the NASA Astronomy Picture of the Day (apod).

I tried keeping the code commented so that it could also serve as a good learning tool. One thing I'd like to include is some way of saving the description of the image. This could be done by saving it into a text file with the same filename as the image, but I suspect there is a better way (using ImageMagick to embed the information?). If you have an idea or preference, post a comment! So, here it goes:

#!/bin/env python
#
# Copyright 2008 Michael Gorelick
#
# This program is free software: you can redistribute it and/or modify
# it under the terms of the GNU General Public License as published by
# the Free Software Foundation, either version 3 of the License, or
# (at your option) any later version.
#
# This program is distributed in the hope that it will be useful,
# but WITHOUT ANY WARRANTY; without even the implied warranty of
# MERCHANTABILITY or FITNESS FOR A PARTICULAR PURPOSE.  See the
# GNU General Public License for more details.
#
# You should have received a copy of the GNU General Public License
# along with this program.  If not, see:
# http://www.gnu.org/licenses/gpl.html.

import re, urllib, sys, os

### Check/Do Help
help = """NASA Image Getter - Michael G. (GPL 2008)
./%s [-h] [imagepath]
imagepath  - path to save images
-h, --help - this help"""%sys.argv[0]

if "-h" in sys.argv or "--help" in sys.argv:
exit(help)
elif len(sys.argv) == 1:
print "Not enough program arguments"
exit(help)

### CONFIG
allowedChars = '[-a-zA-Z0-9*:\'.,&!?\(\)//\n"+;_ ]'
allowedFiles = '[jpg|jpeg|png|gif|mov|avi|mpeg|mpg]'
url = "http://antwrp.gsfc.nasa.gov/apod/archivepix.html"
pbarwidth = 80
try:
imagePath = sys.argv[1]
os.makedirs(imagePath)
except Exception, e:
#errno == 17 means the directory already exists.
if e.errno != 17:
 exit(e)
print "Saving images to %s"%imagePath

##############################################
## This section looks for links to image pages
print "Searching for image pages in", url
html = urllib.urlopen(url).read()
pagePattern = re.compile('([0-9]{6}).html">(' + allowedChars + '*)')
pages = pagePattern.findall(html)
totalpages = len(pages)
print "Found", totalpages, "image pages."

#############################################
## Now we go to the pages and extract a list
##  of images and download
try:
alreadyHave = open(imagePath + "/tracker.log").readlines()
except IOError, e:
alreadyHave = ""
totalhave = len(alreadyHave)
try:
tracker = open(imagePath + "/tracker.log", 'a+')
except IOError, e:
exit(e)

base = url[0:url.rfind('/')]
imagePattern = re.compile('<a href="image/(' + allowedChars + '*.' + \
allowedFiles + ')"', re.IGNORECASE)
sanitizePattern = re.compile('[//\n\r\t]')
imageGet = urllib.URLopener()

for i, page in enumerate(pages):
try:
 if page[0]+"\n" not in alreadyHave:
   #Extract information from image page
   title = sanitizePattern.sub("", page[1])
   currentpage = base + "/ap" + page[0] + ".html"
   print "Getting " + title
   content = urllib.urlopen(currentpage).read()
   image = imagePattern.findall(content)

   #Parse data
   filename = imagePath + "/" + (title + \
     image[0][image[0].rfind('.'):]).replace(" ","_")
   print "\tFilename: " + filename
   url = base + "/image/" + image[0]
   print "\tURL: " + url

   print "\n[" + "="*(pbarwidth*(i-totalhave)/(totalpages-totalhave)) \
     +"@"+"="*(pbarwidth*(i-totalpages)/(totalhave-totalpages)-1)+"]",
   sys.stdout.flush()

   #Download
   imageGet.retrieve(url, filename)
   tracker.write(page[0] + "\n")

   print "\r" + " "*(pbarwidth+2),"\r",
   sys.stdout.flush()
except IndexError, e:
 print "\tImage not found\n"
except IOError, e:
 print "\t404 Error\n"

tracker.close()
print "Done"

Distractions

Well, exams are finally done but I am still contending with all the work I had to put off. In the works is a post on the topic of conscience and the release of my mac remote code. For now, I will distract everyone with an old youtube video of mine: exploding flint (well, actually ferrocium)



The video pretty much explains itself. It is a nice little demo on the properties of ferrocium. In the end, this stability (or lack thereof) is why it proves to be so useful in lighters. Enjoy!
